SMA Combinations

Filter by values

article in 5 product lines for

Reset all

Filter

show article in 5 product lines

article in 5 product lines

Reset all

5 Product categories

SMA Jack Straight to MCX Plug Straight

(3)

WR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-174/U Flexible Cable / 152.4 mm length WR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-178/U Flexible Cable / 152.4 mm length WR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-316/U Flexible Cable / 152.4 mm lengthmore

SMA Jack Straight to MMCX Plug Straight

(3)

WR-CXASY SMA Jack Straight to MMCX Plug Straight / RG-174/U Flexible Cable / 152.4 mm length WR-CXASY SMA Bulkhead Jack to MMCX Straight Plug/ RG-178/U Flexible Cable / 152.4 mm length WR-CXASY SMA Bulkhead Jack to MMCX Straight Plug/ RG-316/U Flexible Cable / 152.4 mm lengthmore

SMA Jack Straight to SMB Plug Right Angled

(1)

WR-CXASY SMB Right Angle Plug to SMA Bulkhead Jack / RG-178/U Flexible Cable / 152.4 mm lengthmore

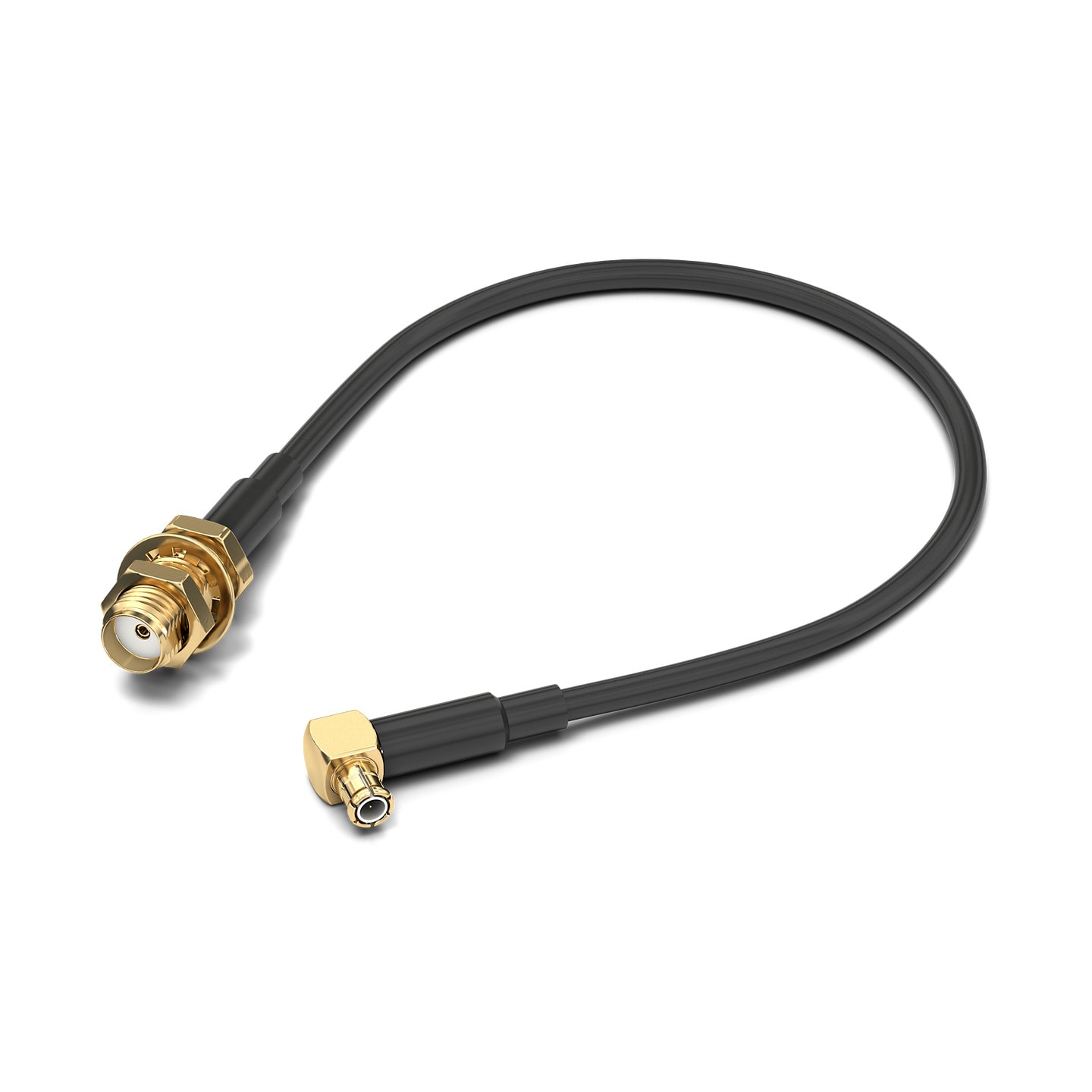

SMA Bulkhead Jack to MCX Right Angle Plug

(3)

WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-174/U Flexible Cable / 152.4mm length WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-178/U Flexible Cable / 152.4mm length WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm lengthmore

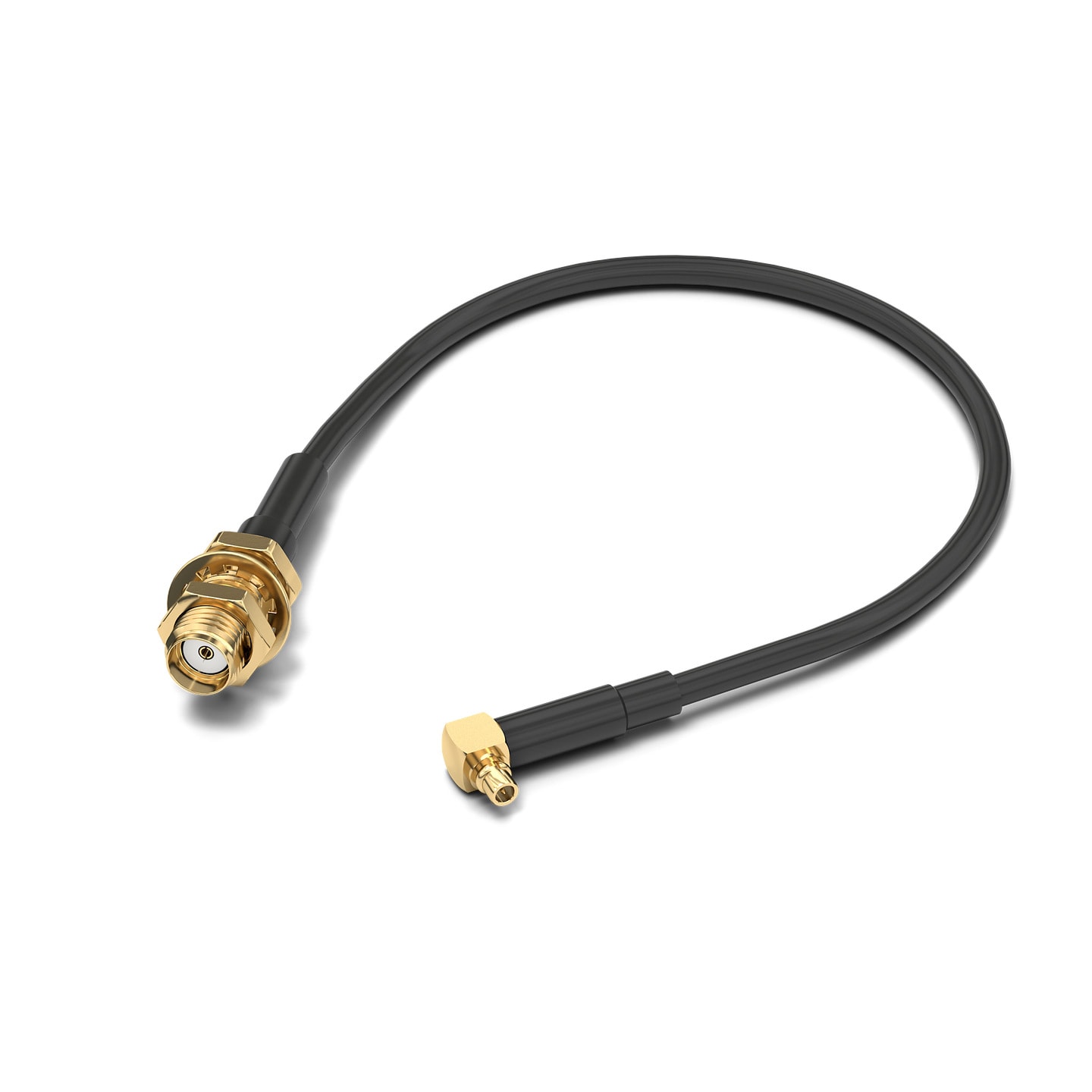

SMA Bulkhead Jack to MMCX Right Angle Plug

(3)

WR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-174/U Flexible Cable / 152.4mm length WR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-178/U Flexible Cable / 152.4mm length WR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm lengthmore

Order Code	Datasheet	Downloads	Status	Connector Type 1	Connector Type 2	Cable	Nominal Cable Length(mm)	f	Z(Ω)	Ingress Protection Code	Product series
65503260515303	SMA, MMCX, RG-174/U	Downloads3 files CAD files ZIP 3D Download_3D_65503260515303 (rev1).pdf \| 4.2 MB IGS Download_IGES_65503260515303 (rev1).iges \| 31 MB STP Download_STEP_65503260515303 (rev1).stp \| 15.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MMCX	CableRG-174/U	Nominal Cable Length152.4 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Jack Straight to MMCX Plug Straight / RG-174/U Flexible Cable / 152.4 mm length
65503260515304	SMA, MMCX, RG-178/U	Downloads3 files CAD files ZIP 3D Download_3D_65503260515304 (rev1).pdf \| 1.7 MB IGS Download_IGS_65503260515304 (rev1).iges \| 3.3 MB STP Download_STEP_65503260515304 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MMCX	CableRG-178/U	Nominal Cable Length152.4 mm	Frequency RangeDC~3 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MMCX Straight Plug/ RG-178/U Flexible Cable / 152.4 mm length
65503260515305	SMA, MMCX, RG-316/U	Downloads3 files CAD files ZIP 3D Download_3D_65503260515305 (rev1).pdf \| 4.2 MB IGS Download_IGES_65503260515305 (rev1).iges \| 30.9 MB STP Download_STEP_65503260515305 (rev1).stp \| 15.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MMCX	CableRG-316/U	Nominal Cable Length152.4 mm	Frequency RangeDC~6 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MMCX Straight Plug/ RG-316/U Flexible Cable / 152.4 mm length
65503206515303	SMA, MCX, RG-174/U	Downloads3 files CAD files ZIP 3D Download_3D_65503206515303 (rev1).pdf \| 3.1 MB IGS Download_IGES_65503206515303 (rev1).iges \| 3.1 MB STP Download_STEP_65503206515303 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MCX	CableRG-174/U	Nominal Cable Length152.4 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-174/U Flexible Cable / 152.4 mm length
65503206515304	SMA, MCX, RG-178/U	Downloads3 files CAD files ZIP 3D Download_3D_65503206515304 (rev1).pdf \| 1.2 MB IGS Download_IGES_65503206515304 (rev1).iges \| 4.3 MB STP Download_STEP_65503206515304 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MCX	CableRG-178/U	Nominal Cable Length152.4 mm	Frequency RangeDC~3 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-178/U Flexible Cable / 152.4 mm length
65503206515305	SMA, MCX, RG-316/U	Downloads3 files CAD files ZIP 3D Download_3D_65503206515305 (rev1).pdf \| 3 MB IGS Download_IGES_65503206515305 (rev1).iges \| 21.4 MB STP Download_STEP_65503206515305 (rev1).stp \| 10.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MCX	CableRG-316/U	Nominal Cable Length152.4 mm	Frequency RangeDC~6 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-316/U Flexible Cable / 152.4 mm length
65503210415301	SMA, SMB, RG-178/U	Downloads3 files CAD files ZIP 3D 3D_65503210415301 (rev1).pdf \| 2.8 MB IGS IGES_65503210415301 (rev1).iges \| 21.8 MB STP STEP_65503210415301 (rev1).stp \| 29.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2SMB	CableRG-178/U	Nominal Cable Length152.4 mm	Frequency RangeDC~3 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMB Right Angle Plug to SMA Bulkhead Jack / RG-178/U Flexible Cable / 152.4 mm length
65501710315301	SMA, MCX, RG-174/U	Downloads3 files CAD files ZIP 3D 3D_65501710315301 (rev1).pdf \| 3 MB IGS IGES_65501710315301 (rev1).iges \| 3.1 MB STP STEP_65501710315301 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MCX	CableRG-174/U	Nominal Cable Length152.4 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-174/U Flexible Cable / 152.4mm length
65501710415301	SMA, MCX, RG-178/U	Downloads3 files CAD files ZIP 3D 3D_65501710415301 (rev1).pdf \| 1.9 MB IGS IGES_65501710415301 (rev1).iges \| 12.5 MB STP STP_65501710415301 (rev1).step \| 6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MCX	CableRG-178/U	Nominal Cable Length152.4 mm	Frequency RangeDC~3 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-178/U Flexible Cable / 152.4mm length
65501710515301	SMA, MCX, RG-316/U	Downloads3 files CAD files ZIP 3D 3D_65501710515301 (rev1).pdf \| 2 MB IGS IGES_65501710515301 (rev1).iges \| 21.2 MB STP STEP_65501710515301 (rev1).stp \| 6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MCX	CableRG-316/U	Nominal Cable Length152.4 mm	Frequency RangeDC~6 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm length
65501910315301	SMA, MMCX, RG-174/U	Downloads3 files CAD files ZIP 3D 3D_65501910315301 (rev1).pdf \| 549.8 KB IGS IGES_65501910315301 (rev1).iges \| 3.3 MB STP STEP_65501910315301 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MMCX	CableRG-174/U	Nominal Cable Length152.4 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-174/U Flexible Cable / 152.4mm length
65501910415301	SMA, MMCX, RG-178/U	Downloads3 files CAD files ZIP 3D 3D_65501910415301 (rev1).pdf \| 2 MB IGS IGES_65501910415301 (rev1).iges \| 13.2 MB STP STEP_65501910415301 (rev1).stp \| 6.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MMCX	CableRG-178/U	Nominal Cable Length152.4 mm	Frequency RangeDC~3 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-178/U Flexible Cable / 152.4mm length
65501910515301	SMA, MMCX, RG-316/U	Downloads3 files CAD files ZIP 3D 3D_65501910515301 (rev1).pdf \| 549.7 KB IGS IGES_65501910515301 (rev1).iges \| 3.3 MB STP STEP_65501910515301 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Connector Type 2MMCX	CableRG-316/U	Nominal Cable Length152.4 mm	Frequency RangeDC~6 GHz	Impedance50 Ω	Ingress Protection CodeNone	Product seriesWR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm length
