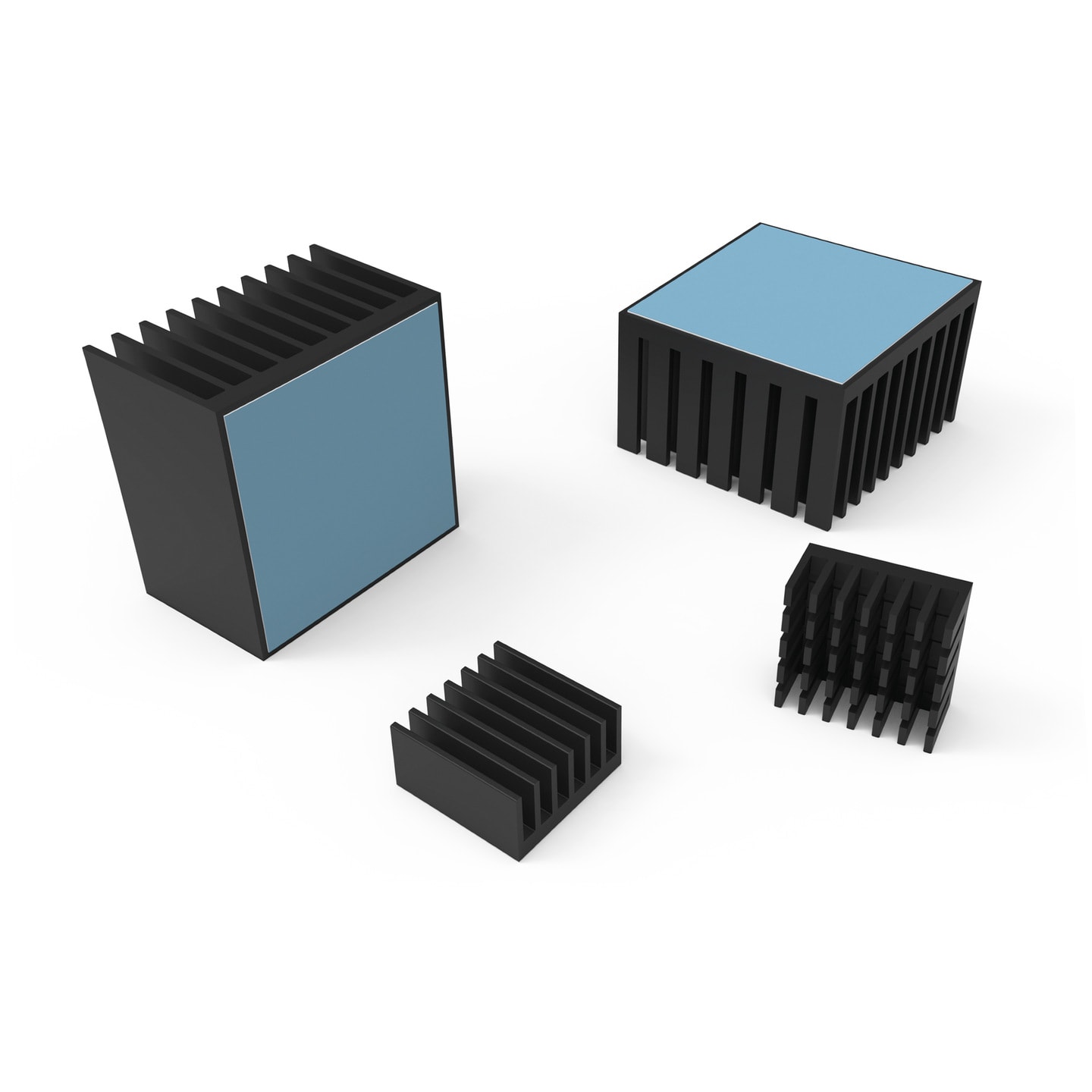

WE-HICI Heatsink for IC with integrated Interface material

Characteristics

Aluminum Heatsinks
Low thermal resistance
High surface emissivity
Size adapts to different IC
Different design depending on airflow

Applications

Microprocessors
Memory modules
DC/DC converters
BGA

Products

All

Unidirectional

Bidirectional

Filter article data

show article in 2 product lines

article in 2 product lines

	Order Code	Datasheet	Downloads	Status	L(mm)	W(mm)	H(mm)	R_TH(K/W)	Material	Surface	Samples
	40905112102020	20 mm, 20 mm, 10 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40905112102020 (rev26a).a3dcomp \| 183 KB CAD files ZIP 3D 40905112102020_3d (rev1).pdf \| 37.3 KB IGS 40905112102020 (rev1).igs \| 413.5 KB STP 40905112102020 (rev1).stp \| 95.8 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length20 mm	Width20 mm	Height10 mm	Thermal Resistance17.62 K/W	MaterialAluminium	SurfaceBlack anodized
	40906112102020	20 mm, 20 mm, 10 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40906112102020 (rev26a).a3dcomp \| 761 KB CAD files ZIP 3D 40906112102020_3D (rev1).pdf \| 152.2 KB IGS 40906112102020 (rev1).igs \| 29.4 KB STP 40906112102020 (rev1).stp \| 423.3 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length20 mm	Width20 mm	Height10 mm	Thermal Resistance17.62 K/W	MaterialAluminium	SurfaceBlack anodized
	40906112092424	24 mm, 24 mm, 9 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40906112092424 (rev26a).a3dcomp \| 1 MB CAD files ZIP 3D 40906112092424_3D (rev1).pdf \| 186.2 KB IGS 40906112092424 (rev1).igs \| 26.1 KB STP 40906112092424 (rev1).stp \| 532 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length24 mm	Width24 mm	Height9 mm	Thermal Resistance15.41 K/W	MaterialAluminium	SurfaceBlack anodized
	40905112092424	24 mm, 24 mm, 9 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40905112092424 (rev26a).a3dcomp \| 204.4 KB CAD files ZIP 3D 40905112092424_3d (rev1).pdf \| 39 KB IGS 40905112092424 (rev1).igs \| 444.3 KB STP 40905112092424 (rev1).stp \| 96.7 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length24 mm	Width24 mm	Height9 mm	Thermal Resistance15.41 K/W	MaterialAluminium	SurfaceBlack anodized
	40906112163030	30 mm, 30 mm, 16 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40906112163030 (rev26a).a3dcomp \| 1.4 MB CAD files ZIP 3D 40906112163030_3d (rev1).pdf \| 709.3 KB IGS 40906112163030 (rev1).igs \| 3.8 MB STP 40906112163030 (rev1).stp \| 745.7 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length30 mm	Width30 mm	Height16 mm	Thermal Resistance11.26 K/W	MaterialAluminium	SurfaceBlack anodized
	40905112163030	30 mm, 30 mm, 16 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40905112163030 (rev26a).a3dcomp \| 247.6 KB CAD files ZIP 3D 40905112163030_3d (rev1).pdf \| 46.4 KB IGS 40905112163030 (rev1).igs \| 545.2 KB STP 40905112163030 (rev1).stp \| 119.2 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length30 mm	Width30 mm	Height16 mm	Thermal Resistance11.26 K/W	MaterialAluminium	SurfaceBlack anodized
	40905112254040	40 mm, 40 mm, 25 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40905112254040 (rev26a).a3dcomp \| 248.1 KB CAD files ZIP 3D 40905112254040_3d (rev1).pdf \| 46.6 KB IGS 40905112254040 (rev1).igs \| 26.1 KB STP 40905112254040 (rev1).stp \| 117.5 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length40 mm	Width40 mm	Height25 mm	Thermal Resistance8.14 K/W	MaterialAluminium	SurfaceBlack anodized
	40906112254040	40 mm, 40 mm, 25 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40906112254040 (rev26a).a3dcomp \| 1.6 MB CAD files ZIP 3D 40906112254040_3d (rev1).pdf \| 839 KB IGS 40906112254040 (rev1).igs \| 4.3 MB STP 40906112254040 (rev1).stp \| 851.8 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length40 mm	Width40 mm	Height25 mm	Thermal Resistance7.14 K/W	MaterialAluminium	SurfaceBlack anodized
