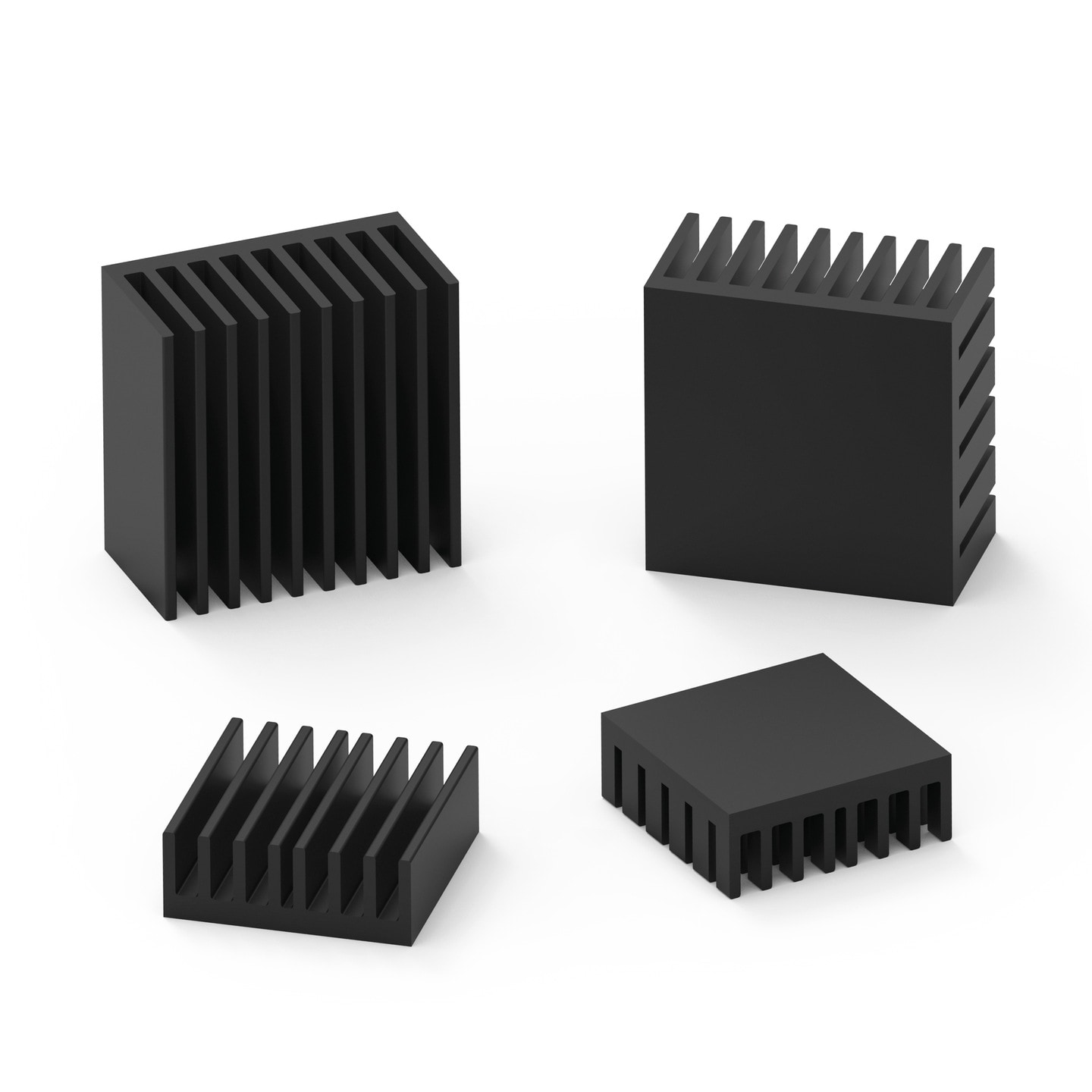

WE-HIC Heatsink for IC

Characteristics

Aluminum heatsinks
Low thermal resistance
High surface emissivity
Size adapt to different IC
Different designs depending on airflow

Applications

Microprocessors
Memory modules
DC/DC converters
BGA

Products

All

Unidirectional

Bidirectional

Filter article data

show article in 2 product lines

article in 2 product lines

	Order Code	Datasheet	Downloads	Status	L(mm)	W(mm)	H(mm)	R_TH(K/W)	Material	Surface	Samples
	40905110102020	20 mm, 20 mm, 10 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40905110102020 (rev26a).a3dcomp \| 166.4 KB CAD files ZIP 3D 40905110102020_3d (rev1).pdf \| 44.8 KB IGS 40905110102020 (rev1).igs \| 395.7 KB STP 40905110102020 (rev1).stp \| 79.6 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length20 mm	Width20 mm	Height10 mm	Thermal Resistance17 K/W	MaterialAluminium	SurfaceBlack anodized
	40906110102020	20 mm, 20 mm, 10 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40906110102020 (rev26a).a3dcomp \| 747.7 KB CAD files ZIP 3D 40906110102020_3d (rev1).pdf \| 144.5 KB IGS 40906110102020 (rev1).igs \| 1.9 MB STP 40906110102020 (rev1).stp \| 410.1 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length20 mm	Width20 mm	Height10 mm	Thermal Resistance17 K/W	MaterialAluminium	SurfaceBlack anodized
	40906110092424	24 mm, 24 mm, 9 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40906110092424 (rev26a).a3dcomp \| 1 MB CAD files ZIP 3D 40906110092424_3d (rev1).pdf \| 184.5 KB IGS 40906110092424 (rev1).igs \| 2.6 MB STP 40906110092424 (rev1).stp \| 524.6 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length24 mm	Width24 mm	Height9 mm	Thermal Resistance15 K/W	MaterialAluminium	SurfaceBlack anodized
	40905110092424	24 mm, 24 mm, 9 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40905110092424 (rev26a).a3dcomp \| 187.8 KB CAD files ZIP 3D 40905110092424_3d (rev1).pdf \| 37.6 KB IGS 40905110092424 (rev1).igs \| 419.5 KB STP 40905110092424 (rev1).stp \| 86.4 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length24 mm	Width24 mm	Height9 mm	Thermal Resistance15 K/W	MaterialAluminium	SurfaceBlack anodized
	40906110163030	30 mm, 30 mm, 16 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40906110163030 (rev26a).a3dcomp \| 1.3 MB CAD files ZIP 3D 40906110163030_3d (rev1).pdf \| 701.9 KB IGS 40906110163030 (rev1).igs \| 3.7 MB STP 40906110163030 (rev1).stp \| 710.1 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length30 mm	Width30 mm	Height16 mm	Thermal Resistance11 K/W	MaterialAluminium	SurfaceBlack anodized
	40905110163030	30 mm, 30 mm, 16 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40905110163030 (rev26a).a3dcomp \| 230.8 KB CAD files ZIP 3D 40905110163030_3d (rev1).pdf \| 44.8 KB IGS 40905110163030 (rev1).igs \| 518.6 KB STP 40905110163030 (rev1).stp \| 108.8 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length30 mm	Width30 mm	Height16 mm	Thermal Resistance11 K/W	MaterialAluminium	SurfaceBlack anodized
	40905110254040	40 mm, 40 mm, 25 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40905110254040 (rev26a).a3dcomp \| 230.9 KB CAD files ZIP 3D 40905110254040_3d (rev1).pdf \| 45 KB IGS 40905110254040 (rev1).igs \| 524.1 KB STP 40905110254040 (rev1).stp \| 109.2 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length40 mm	Width40 mm	Height25 mm	Thermal Resistance8 K/W	MaterialAluminium	SurfaceBlack anodized
	40906110254040	40 mm, 40 mm, 25 mm	Downloads4 files EDA models: Components ZIP ANS ANSYS_40906110254040 (rev26a).a3dcomp \| 1.6 MB CAD files ZIP 3D 40906110254040_3d (rev1).pdf \| 831.7 KB IGS 40906110254040 (rev1).igs \| 4.2 MB STP 40906110254040 (rev1).stp \| 816.3 KB Download all 4 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Length40 mm	Width40 mm	Height25 mm	Thermal Resistance7 K/W	MaterialAluminium	SurfaceBlack anodized
