Hati-I

700 to 2700 MHz

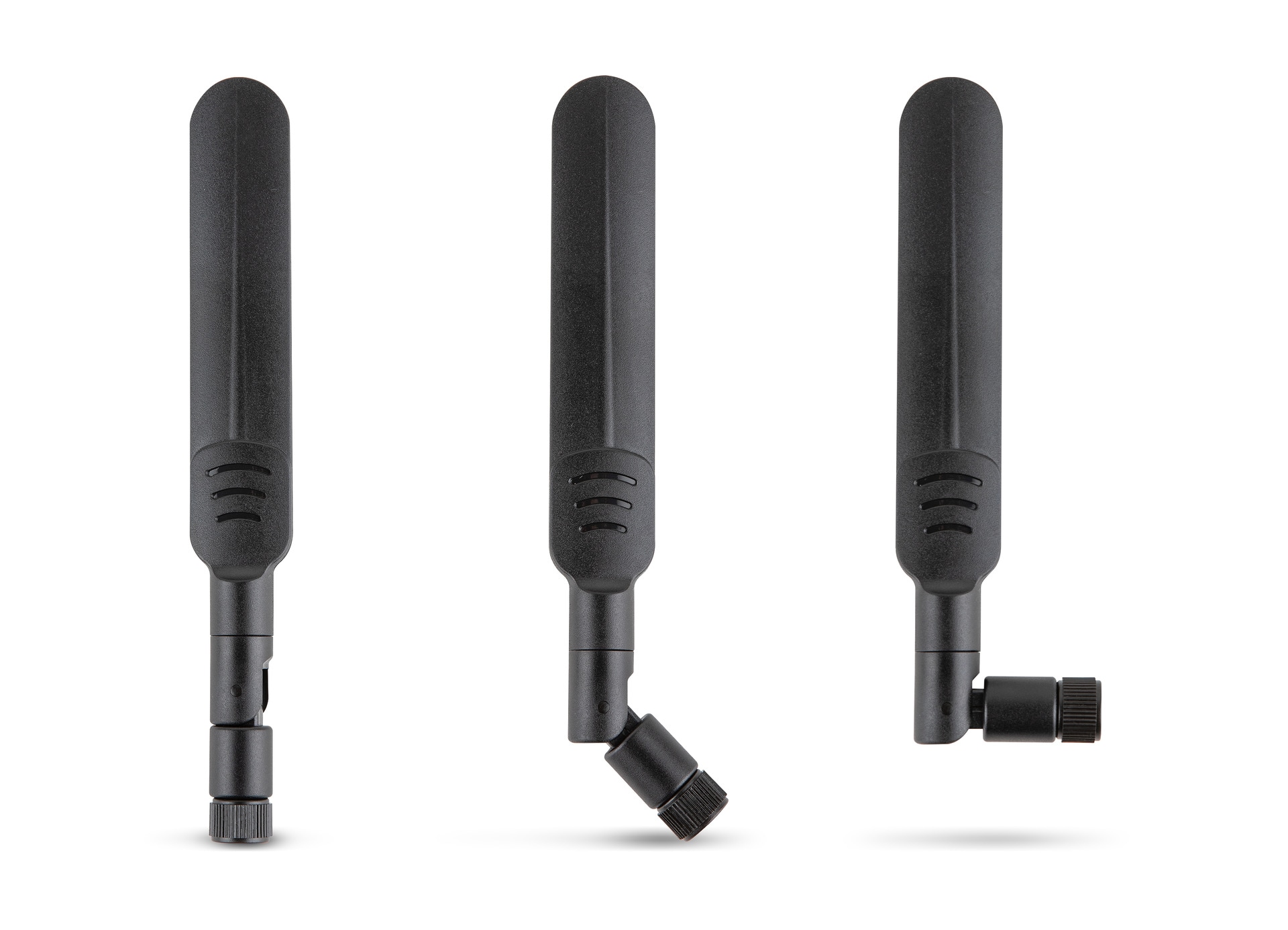

Hati-I

Characteristics

  • Ideally suited for applications where no ground plane is available
  • 700 to 2700 MHz
  • Dipole antenna
  • SMA/m connector
  • 90 degree tiltable
  • Rotatable by 360 degrees
  • Robust construction

Applications

  • 700 to 2700 MHz LTE Applications
  • Smart factory and Industry 4.0
  • Smart city and smart home

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Description
Frequency Range
Gpeak,1(dBi)
VSWR1
Gpeak,2(dBi)
VSWR2
Z(Ω)
Operating Temperature
Samples
2600130084
Hati-I, 700-2700 MHz, 3.3 dBi
Downloads2 files

CAD files ZIP

Download all 2 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
DescriptionHati-I
Frequency Range Min & Max 700-2700 MHz
Peak Gain3.3 dBi
VSWR 13.5
Peak Gain6 dBi
VSWR 23
Impedance50 Ω
Operating Temperature -40 °C up to +85 °C
