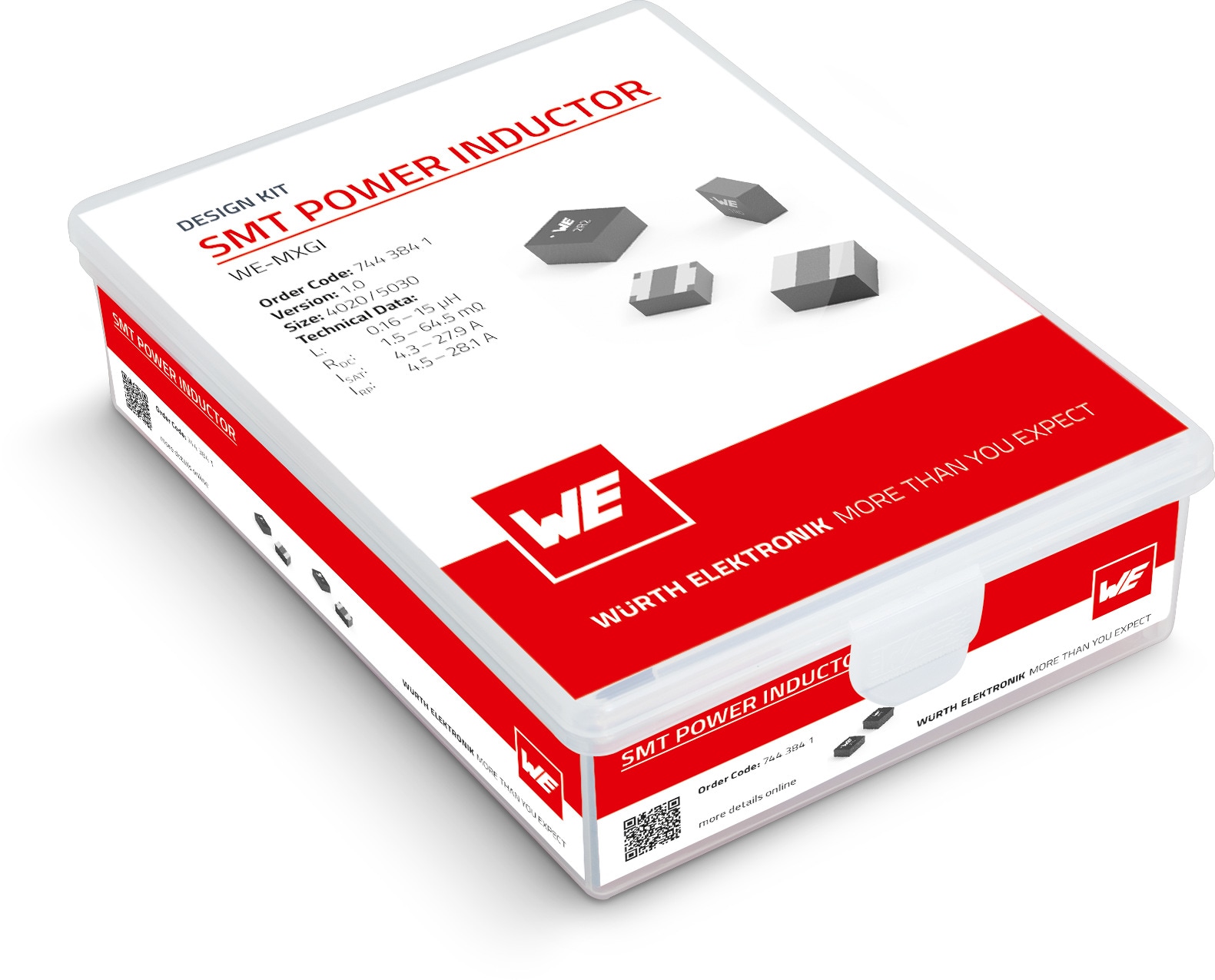

Design Kit SMT Power Inductor WE-MXGI
EXTENDEDOrder Code 7443841
Applications
- DC/DC-converter for high current power supplies
- DC/DC-converter for Field Programmable Gate Array (FPGA)
- POL-converters
- Portable power like PDA, digital camera
- Mainboards/graphic cards
- Battery powered devices
- Wireless communication devices
- Power supplies for smartphones, tablet PCs and other mobile devices
- High frequency applications (GaN and SiC)
Products
Filter by
show in
article in 0 product lines
Reset allOrder Code | Datasheet | Simulation | Downloads | Status | Product series | L(µH) | ISAT,30%(A) | Size | IRP,40K(A) | Samples |
|---|---|---|---|---|---|---|---|---|---|---|
| WE-MXGI SMT Power Inductor, 0.16 µH, 27.9 A | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance0.16 µH | Saturation Current @ 30%27.9 A | Size4020 | Performance Rated Current24.2 A | ||||
| WE-MXGI SMT Power Inductor, 0.22 µH, 25.4 A | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance0.22 µH | Saturation Current @ 30%25.4 A | Size5030 | Performance Rated Current28.1 A | ||||
| WE-MXGI SMT Power Inductor, 0.3 µH, 17.6 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance0.3 µH | Saturation Current @ 30%17.6 A | Size4020 | Performance Rated Current23.2 A | ||||
| WE-MXGI SMT Power Inductor, 0.4 µH, 14.8 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance0.4 µH | Saturation Current @ 30%14.8 A | Size4020 | Performance Rated Current16.9 A | ||||
| WE-MXGI SMT Power Inductor, 0.47 µH, 20 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance0.47 µH | Saturation Current @ 30%20 A | Size5030 | Performance Rated Current23 A | ||||
| WE-MXGI SMT Power Inductor, 0.6 µH, 21.2 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance0.6 µH | Saturation Current @ 30%21.2 A | Size5030 | Performance Rated Current21.5 A | ||||
| WE-MXGI SMT Power Inductor, 0.65 µH, 12.6 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance0.65 µH | Saturation Current @ 30%12.6 A | Size4020 | Performance Rated Current15.2 A | ||||
| WE-MXGI SMT Power Inductor, 0.82 µH, 16.7 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance0.82 µH | Saturation Current @ 30%16.7 A | Size5030 | Performance Rated Current19 A | ||||
| WE-MXGI SMT Power Inductor, 1 µH, 9.8 A | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance1 µH | Saturation Current @ 30%9.8 A | Size4020 | Performance Rated Current12.1 A | ||||
| WE-MXGI SMT Power Inductor, 1 µH, 14.3 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance1 µH | Saturation Current @ 30%14.3 A | Size5030 | Performance Rated Current15.8 A | ||||
| WE-MXGI SMT Power Inductor, 1.2 µH, 8.8 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance1.2 µH | Saturation Current @ 30%8.8 A | Size4020 | Performance Rated Current11 A | ||||
| WE-MXGI SMT Power Inductor, 1.2 µH, 14.3 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance1.2 µH | Saturation Current @ 30%14.3 A | Size5030 | Performance Rated Current17.2 A | ||||
| WE-MXGI SMT Power Inductor, 1.5 µH, 8.4 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance1.5 µH | Saturation Current @ 30%8.4 A | Size4020 | Performance Rated Current10.3 A | ||||
| WE-MXGI SMT Power Inductor, 1.5 µH, 12.3 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance1.5 µH | Saturation Current @ 30%12.3 A | Size5030 | Performance Rated Current14.9 A | ||||
| WE-MXGI SMT Power Inductor, 1.8 µH, 7.1 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance1.8 µH | Saturation Current @ 30%7.1 A | Size4020 | Performance Rated Current9.5 A | ||||
| WE-MXGI SMT Power Inductor, 2.2 µH, 10.5 A | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance2.2 µH | Saturation Current @ 30%10.5 A | Size5030 | Performance Rated Current12.4 A | ||||
| WE-MXGI SMT Power Inductor, 2.2 µH, 5.8 A | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance2.2 µH | Saturation Current @ 30%5.8 A | Size4020 | Performance Rated Current7.8 A | ||||
| WE-MXGI SMT Power Inductor, 3.3 µH, 8.2 A | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance3.3 µH | Saturation Current @ 30%8.2 A | Size5030 | Performance Rated Current10 A | ||||
| WE-MXGI SMT Power Inductor, 3.3 µH, 5.3 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance3.3 µH | Saturation Current @ 30%5.3 A | Size4020 | Performance Rated Current6.1 A | ||||
| WE-MXGI SMT Power Inductor, 4.7 µH, 5.7 A | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance4.7 µH | Saturation Current @ 30%5.7 A | Size4020 | Performance Rated Current5.2 A | ||||
| WE-MXGI SMT Power Inductor, 4.7 µH, 7.7 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance4.7 µH | Saturation Current @ 30%7.7 A | Size5030 | Performance Rated Current8.2 A | ||||
| WE-MXGI SMT Power Inductor, 5.6 µH, 6.8 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance5.6 µH | Saturation Current @ 30%6.8 A | Size5030 | Performance Rated Current7.1 A | ||||
| WE-MXGI SMT Power Inductor, 6.8 µH, 6.8 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance6.8 µH | Saturation Current @ 30%6.8 A | Size5030 | Performance Rated Current6.5 A | ||||
| WE-MXGI SMT Power Inductor, 8.2 µH, 5.9 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance8.2 µH | Saturation Current @ 30%5.9 A | Size5030 | Performance Rated Current6.1 A | ||||
| WE-MXGI SMT Power Inductor, 10 µH, 5.4 A | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance10 µH | Saturation Current @ 30%5.4 A | Size5030 | Performance Rated Current5.5 A | ||||
| WE-MXGI SMT Power Inductor, 12 µH, 4.9 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance12 µH | Saturation Current @ 30%4.9 A | Size5030 | Performance Rated Current5 A | ||||
| WE-MXGI SMT Power Inductor, 15 µH, 4.3 A | Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years. | Product seriesWE-MXGI SMT Power Inductor | Inductance15 µH | Saturation Current @ 30%4.3 A | Size5030 | Performance Rated Current4.5 A |
