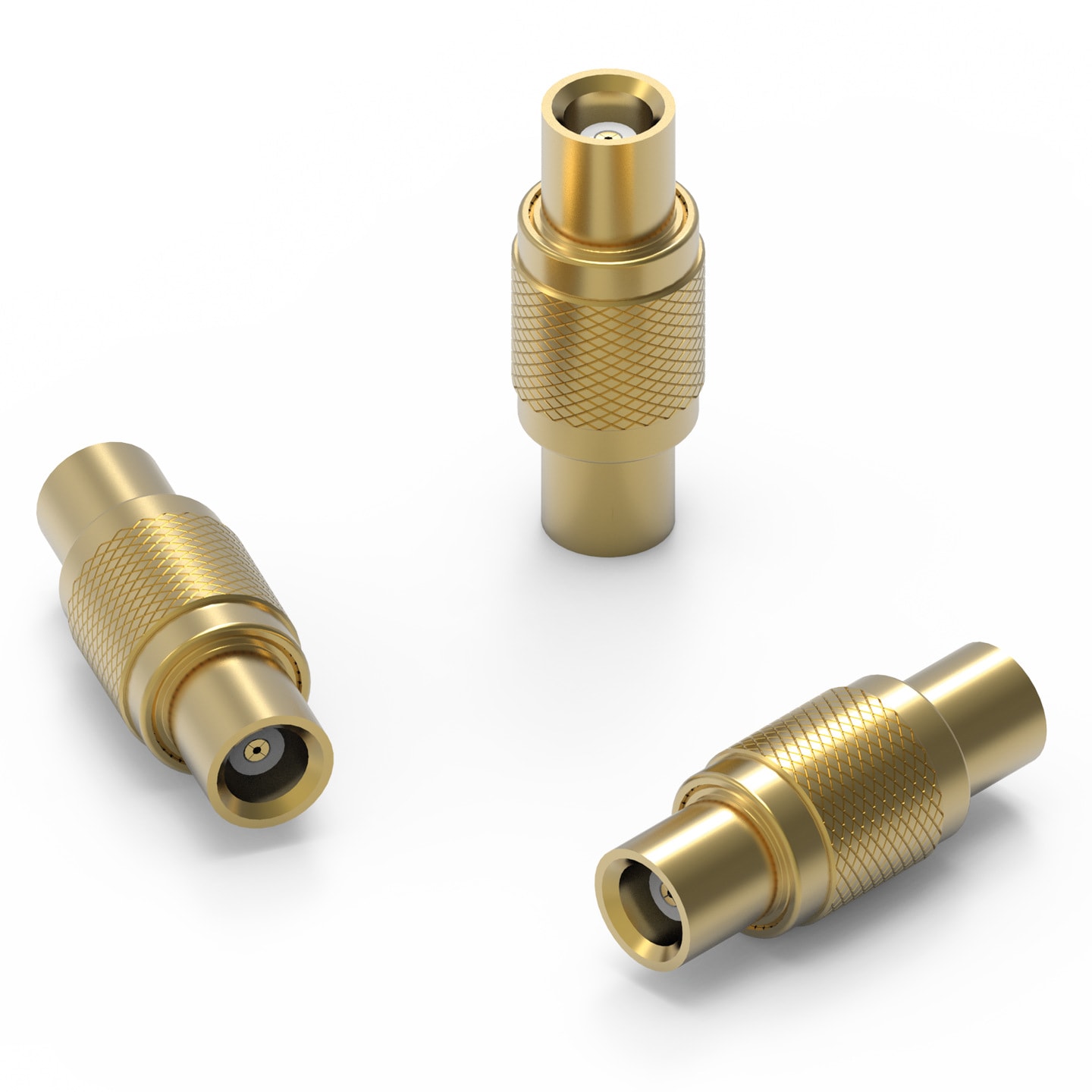

WR-ADPT MCX Jack to MCX Jack

WR-ADPT MCX Jack to MCX Jack
SizeDimen­sions
MCX Jack ┃MCX Jack

Characteristics

  • Interface: IEC 61169-36
  • Mating cycles: 500 cycles
  • Impedance: 50Ω
  • Plating: Gold

Applications

  • Network and communications
  • RF Test and measurement equipment
  • Industrial applications
  • Outdoor or humidity environment

Products

MCX Jack ┃MCX Jack
Reset all
Filter article data
Filter by
Delete all
 show  article in 1 product lines
 article in 1 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Connector Type 1
Gender 1
Connector Type 2
Gender 2
f
Orientation Type
Operating Temperature
Samples
WR-ADPT MCX Jack to MCX Jack
64406106111000
MCX, Jack, MCX
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Connector Type 1MCX
Gender 1Jack
Connector Type 2MCX
Gender 2Jack
Frequency RangeDC~6 GHz
Orientation TypeStraight
Operating Temperature -55 °C up to +155 °C

Mates with

WR-MCX PCB THT/SMT
